128*64 Graphics Display Module

128*64 graphics display modules are commonly used in various electronic devices, including credit card machines, Beidou satellite intercoms, and Beidou car driving locators. These displays usually strike a balance between size and functionality, making them suitable for different applications. CNK has advanced production technology and a strict quality control system to ensure that each screen reaches the industry-leading level. At the same time, we provide OEM services and can customize products according to your needs to meet your unique market needs. Whether it is size, color, resolution or other functions, we can provide you with a satisfactory solution.

Model:CNK12864-24289A1

Send Inquiry

Product Description

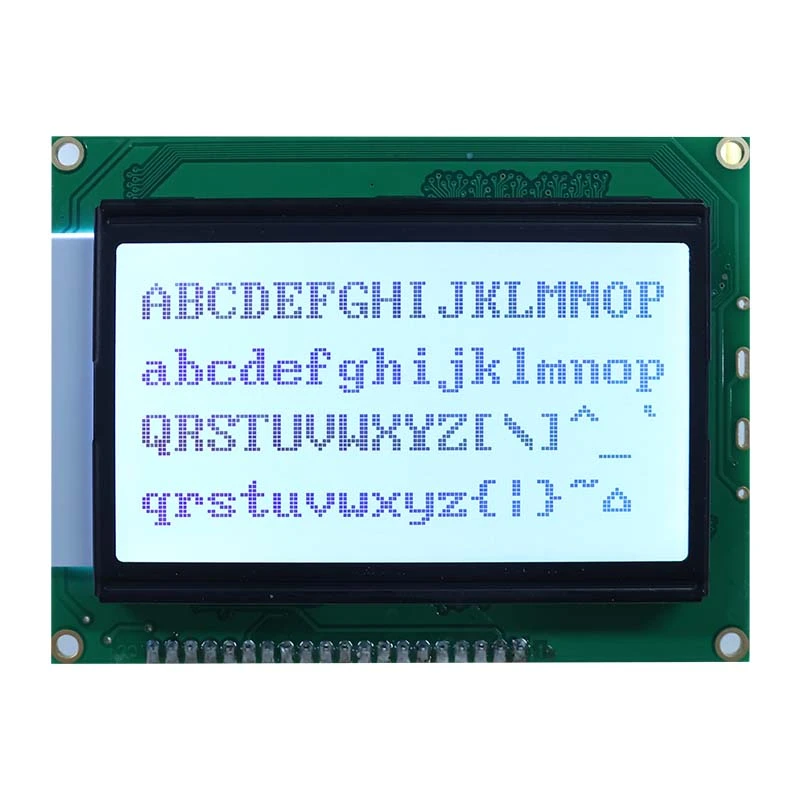

CNK12864-24289A1, 128*64 graphics display module, this product has the characteristics of high contrast and ultra-wide operating temperature. The resolution is 128*64, the ultra-wide operating temperature ratio is -20°C+70°C, the LCM type is COB, the LCD type is FSTN, the viewing angle is 6 o'clock, the driver IC used is ST7920+ST7921, the interface is serial port, and the backlight displays white.

Features:

1）High contrast

2）Ultra-wide operating temperature

Specification:

Resolution：128*64

Module Size：93.4*70*12.5 mm

Display Type： Positive /Transflectice

LCM type:COB

LCD type:FSTN

Operating temperature：-20°C+70°C

Storage temperature:-30°C+80°C

Driver IC：ST7920+ST7921
