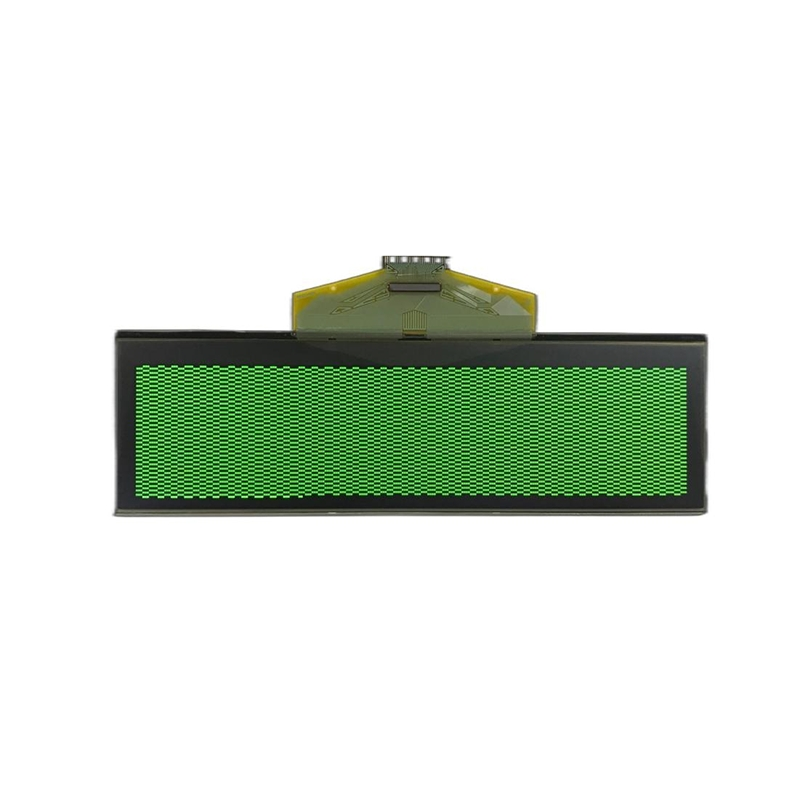

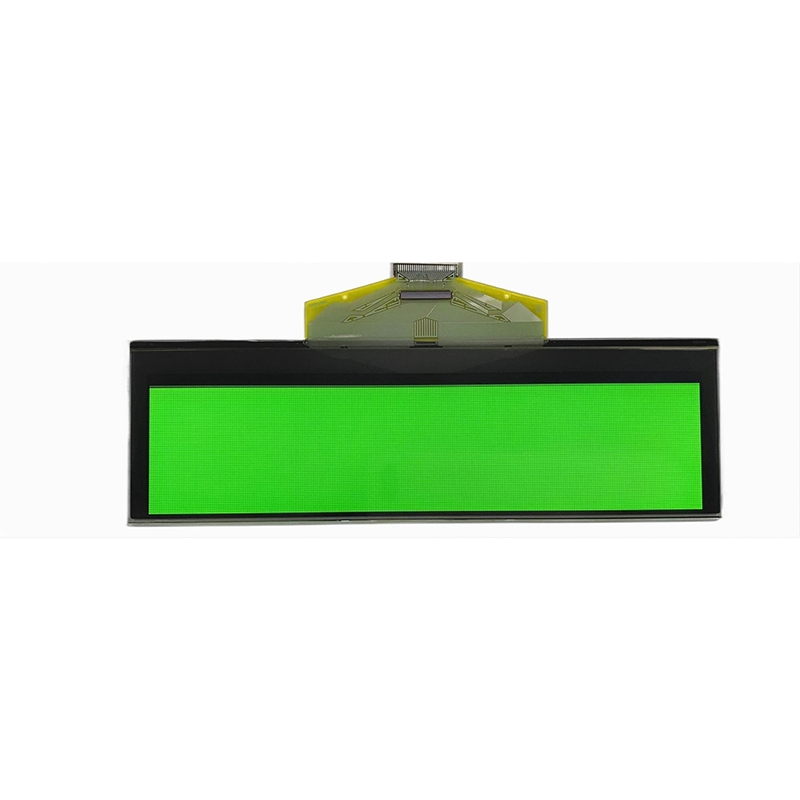

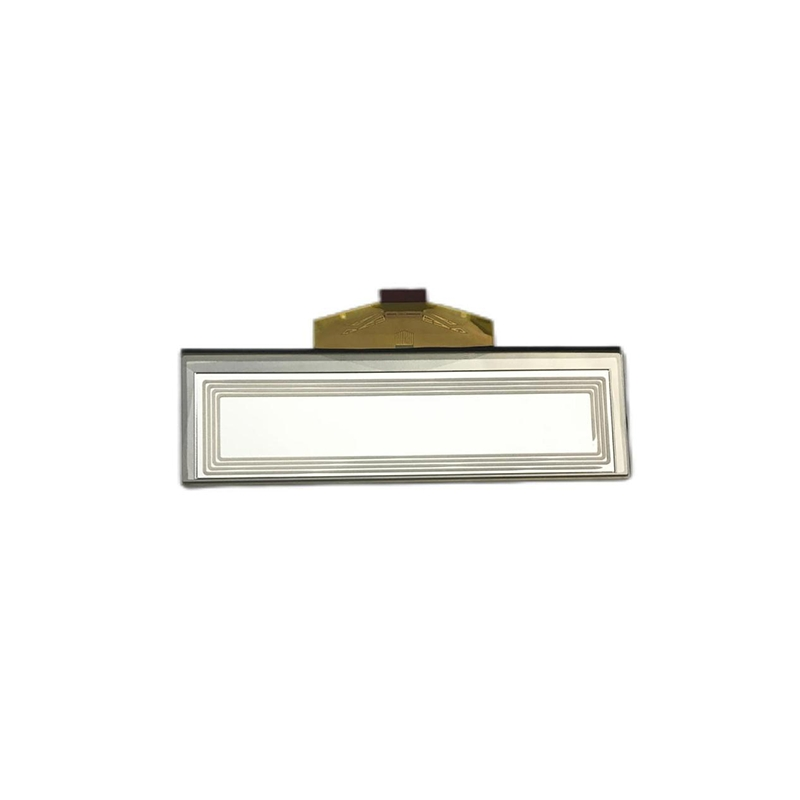

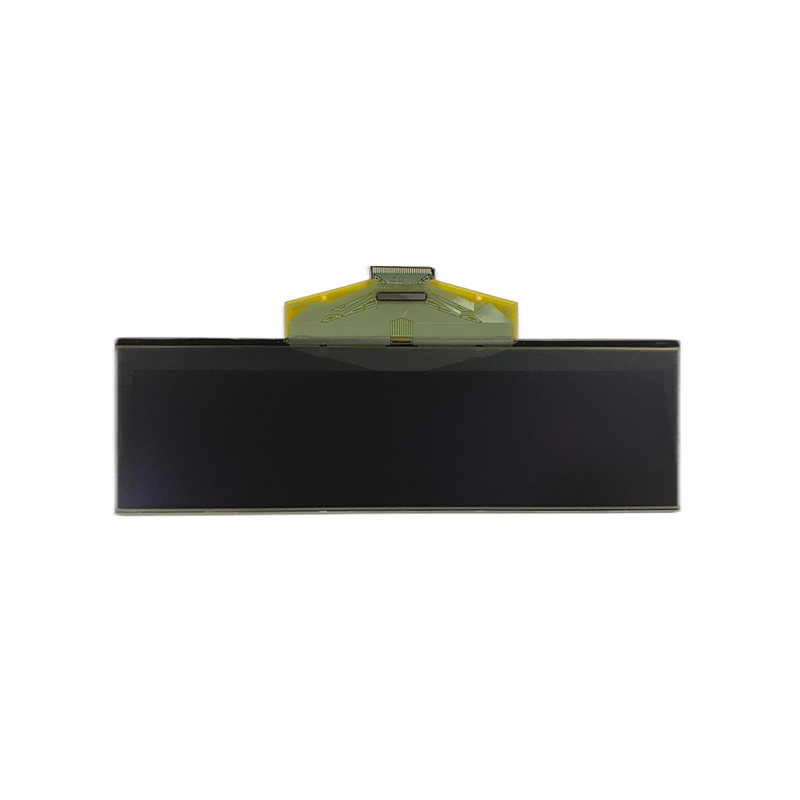

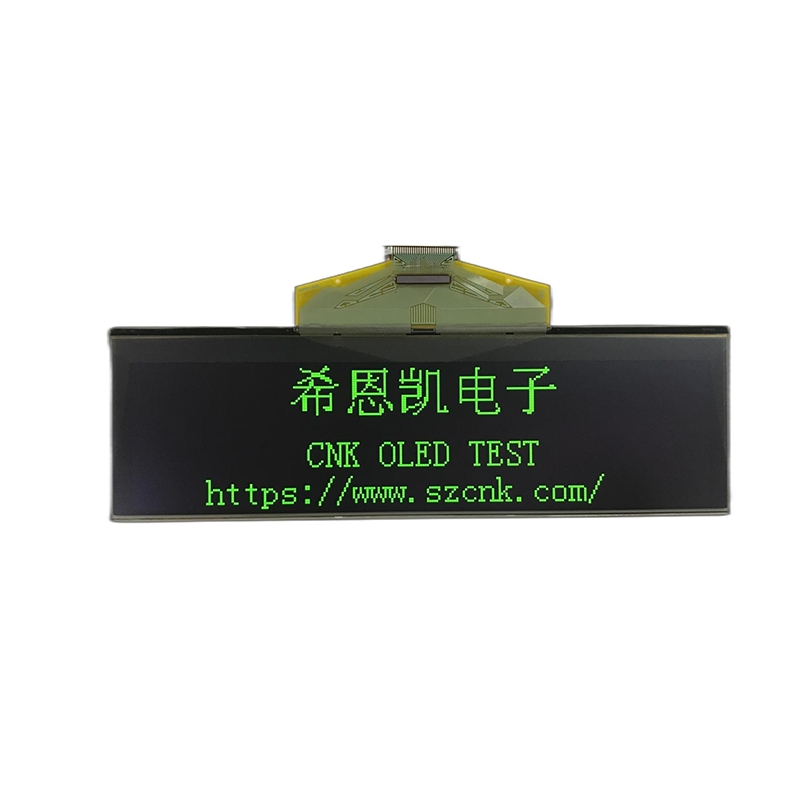

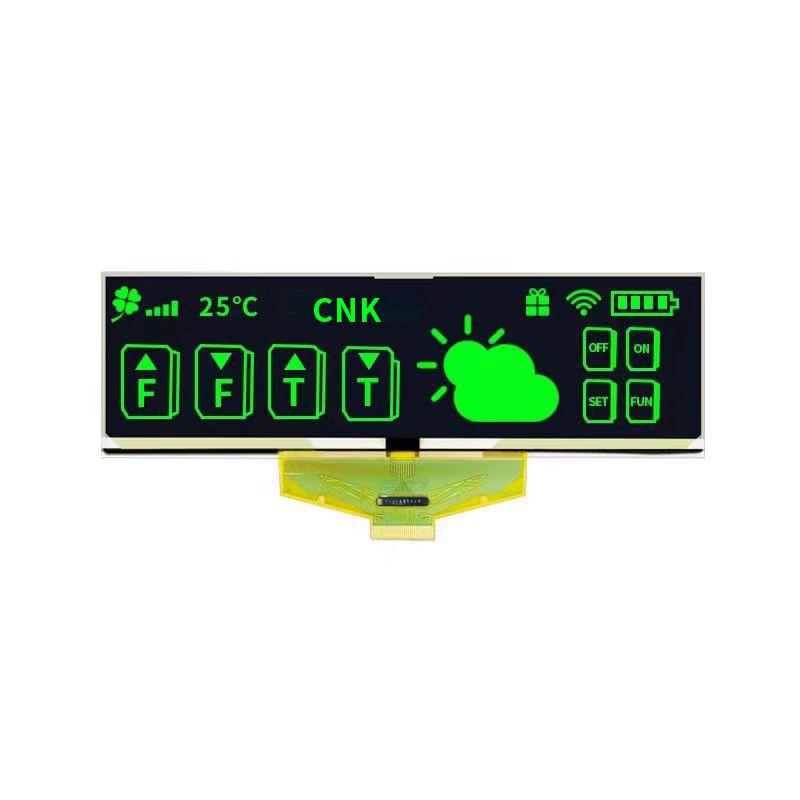

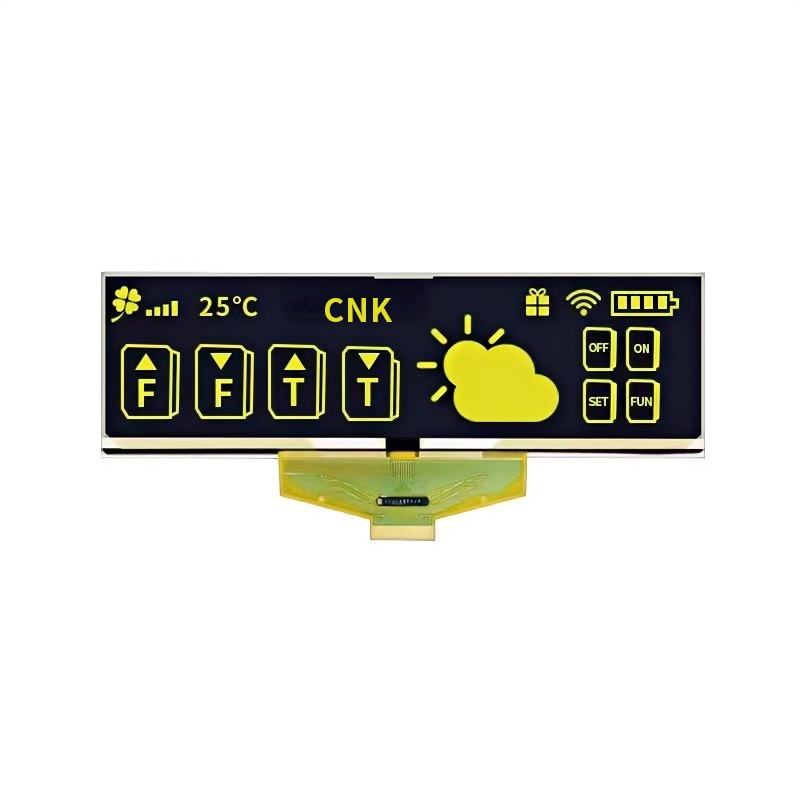

5.5 inch PM OLED Panel

CNK is a display manufacturer in china. The CNK high quality 5.5 inch PM OLED Panel are typically much thinner and more flexible than traditional LCD displays. This makes them suitable for applications where space is limited or where curved or flexible displays are desired. OLED display panels offer superior image quality, flexibility, and power efficiency compared to traditional LCD displays. However, considerations such as cost, lifespan, and potential for pixel degradation should be taken into account when selecting OLED Display Panels for specific applications.

Model:CNKO5500-24459A1

Send Inquiry

Product Description

CNKO5500-24459A1, the 5.5 inch PM OLED Panel of CNK, featured with low power consumption, durability, lightweight and thin, ultra wide temperature, highly customizable, making them ideal for a lot of products such as high-end electronic scales, flow meters (gas stations), instruments and meters (toll stations), etc.

1) Low power consumption and durability
2) Lightweight and thin
3) Ultra wide temperature

Specification:

1、Resolution: 256(H) x 64(V)
2、Active Area: 135.65(W)*33.89(H)
3、Outline Dimension: 146.00(W)*45.00(H)*1.80（T）
4、0perating Voltage: 12V
5、0perating Temperature: -40°C~80°C
6、Storage Temperature: -40°C~85°C
7、Viewing Direction: all
8、Display Color: Green
9、Connector: Parallel / Serial
10、Driver IC: SSD1322UR1
11、package type: COF
12、RoHS Compliant: YES

Applications:

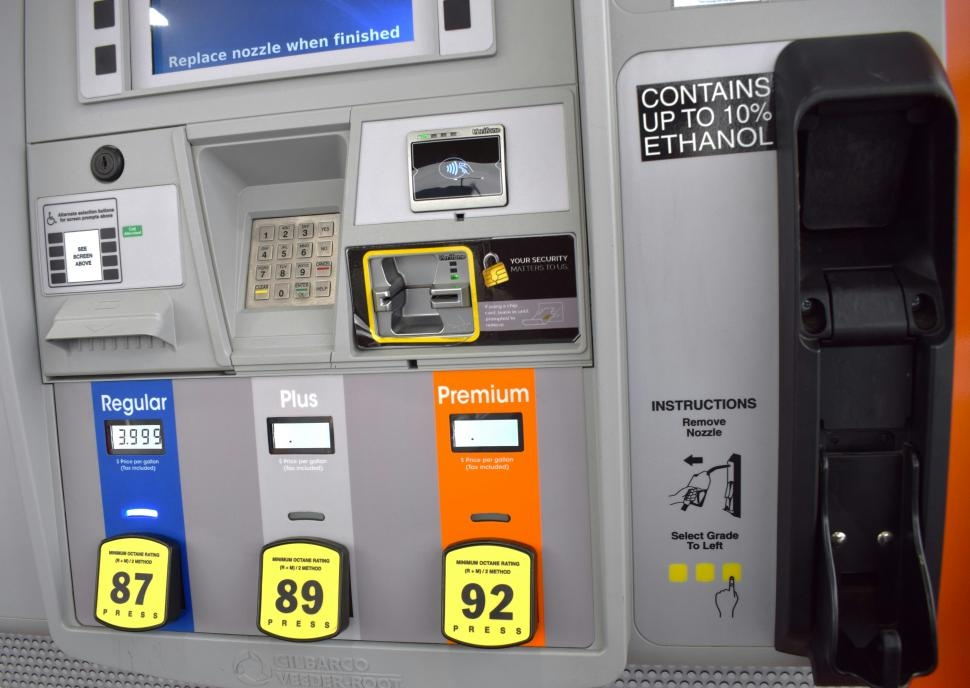

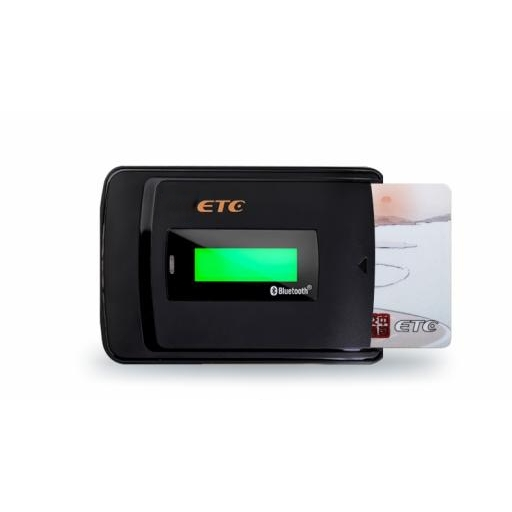

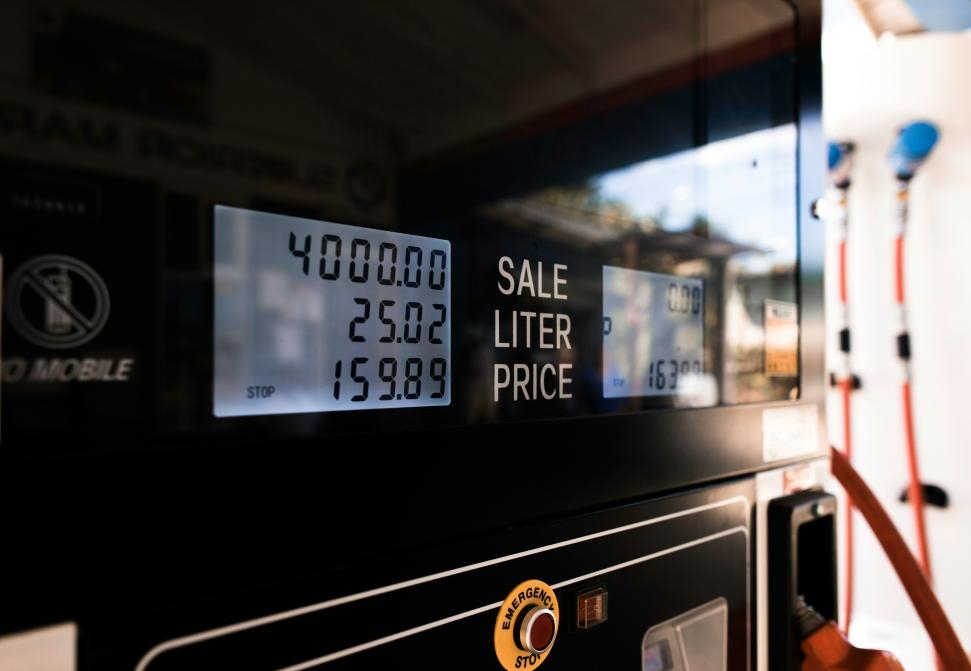

high-end electronic scales, Flow meters (gas stations), instruments and meters (toll stations), etc
