Segment LCM For New Energy

CNK is a china lcd display manufactor. we provides customized segment LCD display solutions tailored to the unique requirements of our clients. CNKD0601-23465A1 Segment LCM For New Energy is clear and easy to read under sunlight, wide temperature range, low-power consumption, making them suitable for new energy equipments such as outdoor power supply, UPS uninterruptible power supply, charging pile, etc.

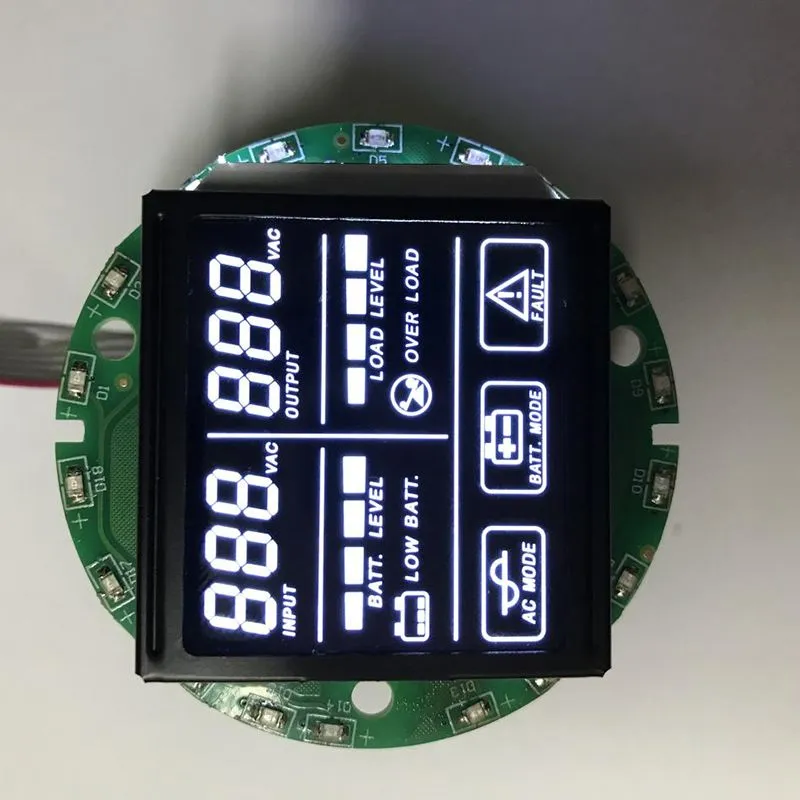

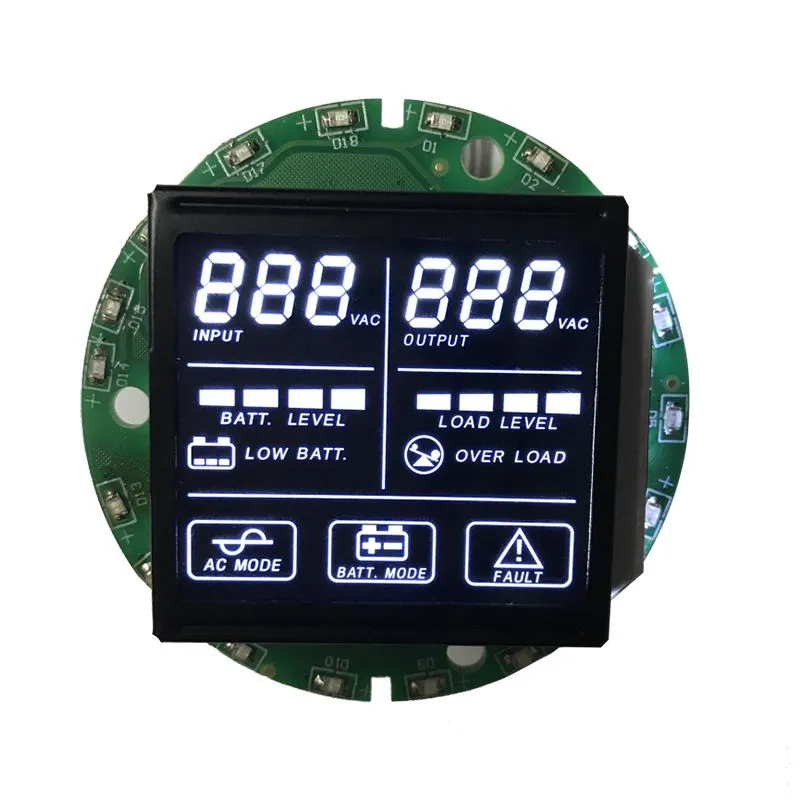

Model:CNKD0601-23465A1

Send Inquiry

Product Description

As the professional manufacturer, we would like to provide you high quality Segment LCM For New Energy.

Model：CNKD0601-23465A1
Features:
1) Clear and easy to read under sunlight
2) Wide temperature range
3)low-power consumption

Specification:

1、Active Area: 34mm (H) x 34 mm (V)
2、Outline Dimension: 55 mm (H) x 55 mm (V)
3、Display Type: VA/NEGATIVE
4、LCD Operating Voltage：3.3V
5、Operating Temperature：-20°C~70°C
6、Storage Temperature: -30°C~80°C
7、Viewing Direction: 12: 00
8、Polarizer Type: TRANSMISSIVE
9、Backlight：White
10、Connector: SPI
11、IC: AIP31621
12、RoHS Compliant：YES

Applications:

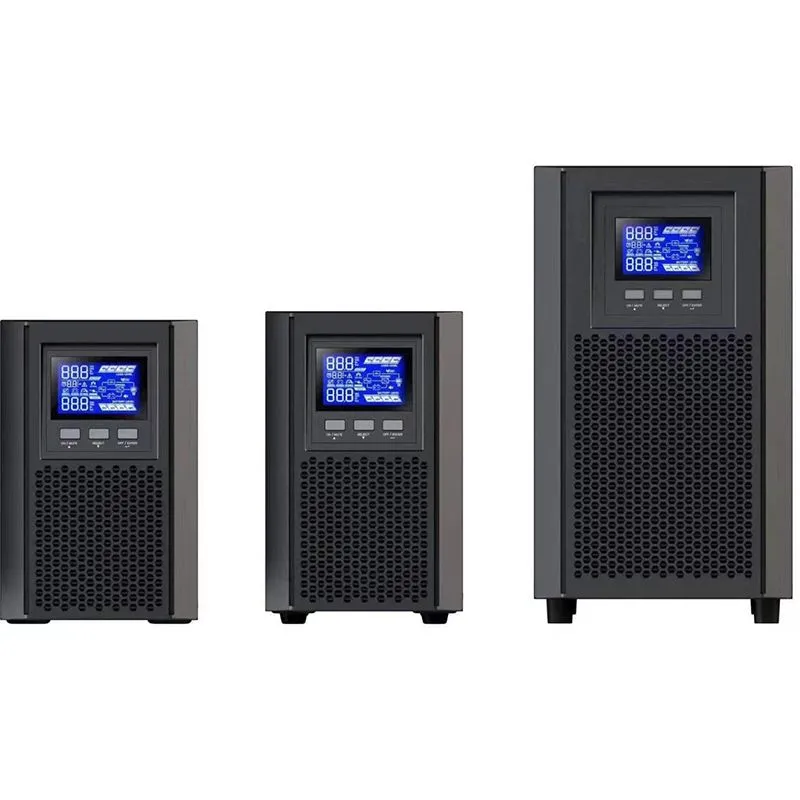

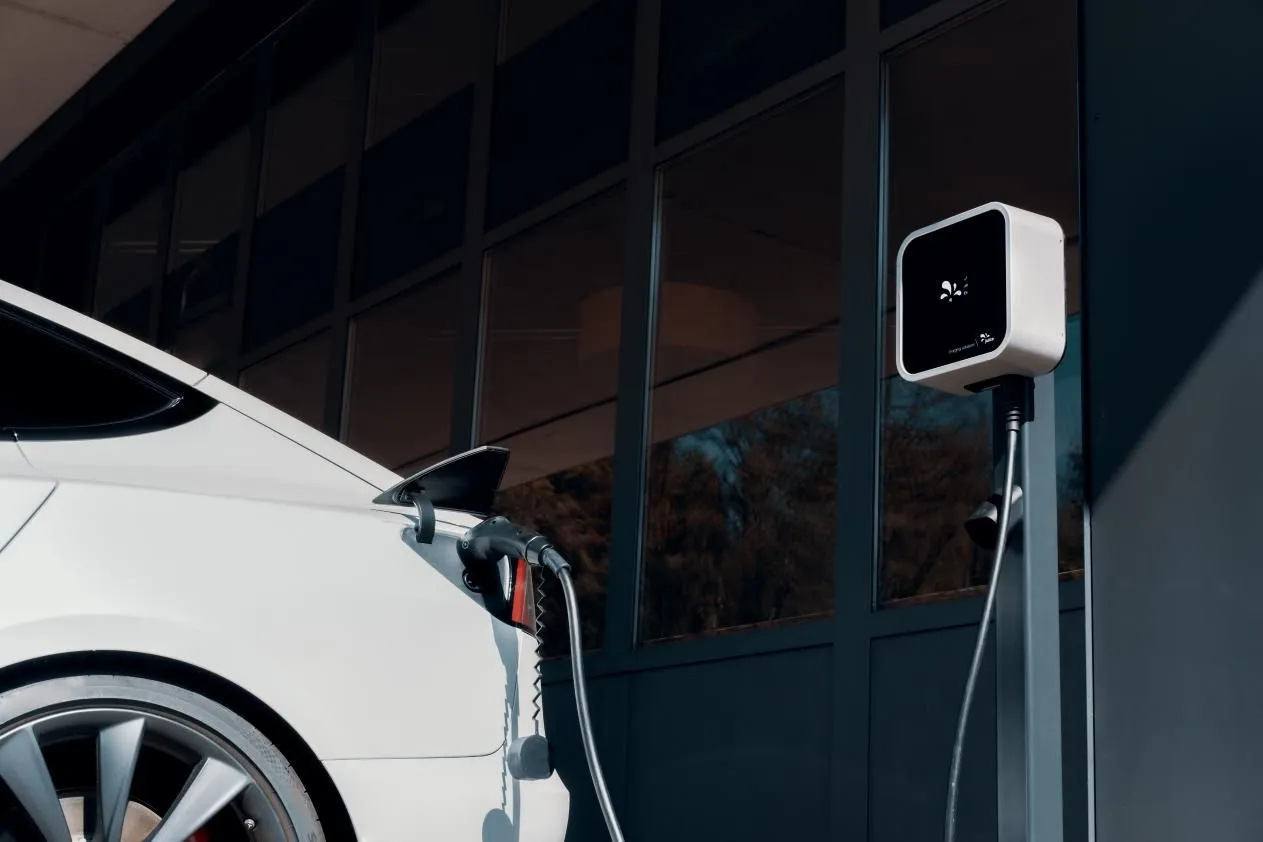

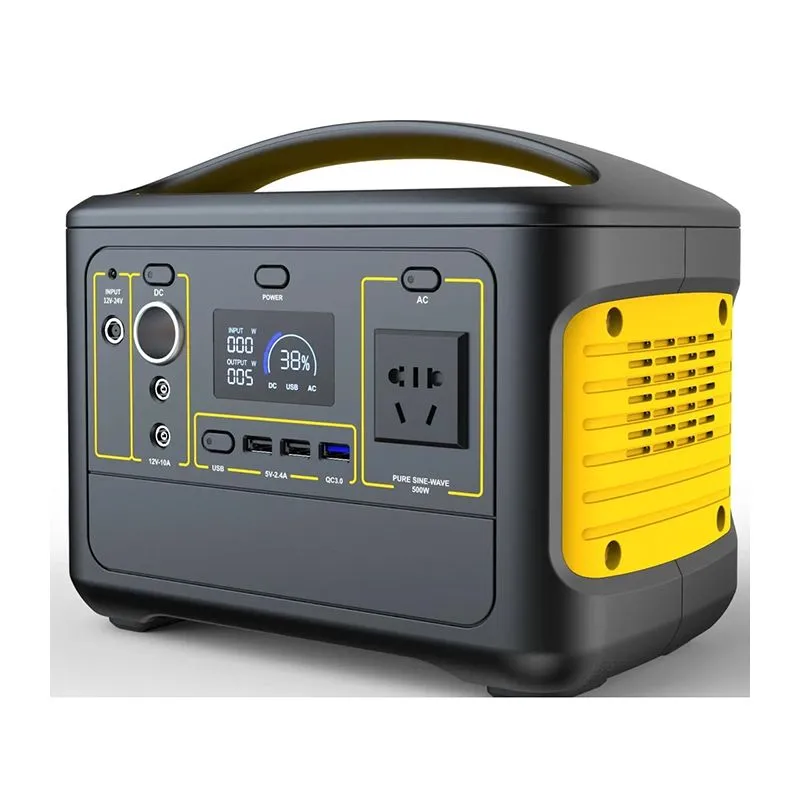

outdoor power supply, UPS uninterruptible power supply, charging pile and other new energy equipments
